TAdvStringGrid error on dynamic creation...

[Mark_Drake]

Hello,

Version 9.1.4.7, Delphi 10.2.3.

This code has been working for a few years. Not sure when this began. Testing today exposed it.

Dynamically creating a TAdvStringGrid.
When I try to set anything having to do with the font, failure.

Here is the calling code:

procedure TGraphicExcelGrid.SetStringGridProperties;
begin
 if not Assigned(grid) then       //might be a reload from a cancel in the animation dialog
  Exit;

 grid.Color:=bgColor;
 grid.Font.Name:=fontName;
// grid.Font.Size:=textSize;
// grid.Font.Style:=textStyle;
// grid.Font.Color:=fgColor;
// grid.Font.Charset:=charSet;
end;

Here is where it fails, line after inherited.

procedure TAdvDateTimePicker.CreateWnd;
var
  oldKind: TAdvDateTimeKind;
begin
  inherited;
  FOldCheck := Checked;
  oldKind := FKind;
  FKind := dkDate;
  Kind := oldKind;

  if not ParentFont and (LabelCaption <> '') and not (csDesigning in ComponentState) then
  begin
    FLblUpdate := true;
    LabelFont.Height := Round(FLblFntHeight * CalculateDPIScale(Self));
    FLblUpdate := false;
  end;

  if Assigned(FLabel) then
    UpdateLabelPos;
end;

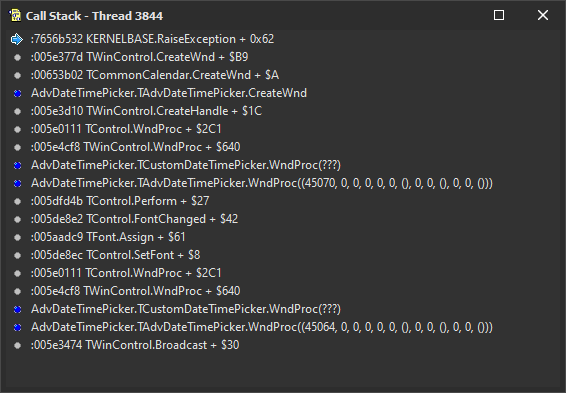

Here is the stack trace.

Ideas?

Thanks,

Mark

[brunofierens]

We discovered this actually is caused by a bug in the VCL TDateTimePicker in Delphi 10.2
This bug can be reproduced with

var
  p: TDateTimePicker;
begin
  p := TDateTimePicker.Create(Self);
  p.Name := 'picker';
  p.Font.Name := 'Segoe UI';
end;

We implemented a workaround for this Delphi bug and this workaround will be in the next update.

[Mark_Drake]

Thank you.
