We have been using Diagram Studio for a long time and a large number of our diagrams are held in a database in the older "text" format.
Now that we have updated the package to Delphi 12 and Diagram Studio v4.32 we are seeing text scaling problems when the old diagram is loaded if the Text Scaling factor of Windows is not 100%.
Behaving normally at Display Scale Factor of 100%

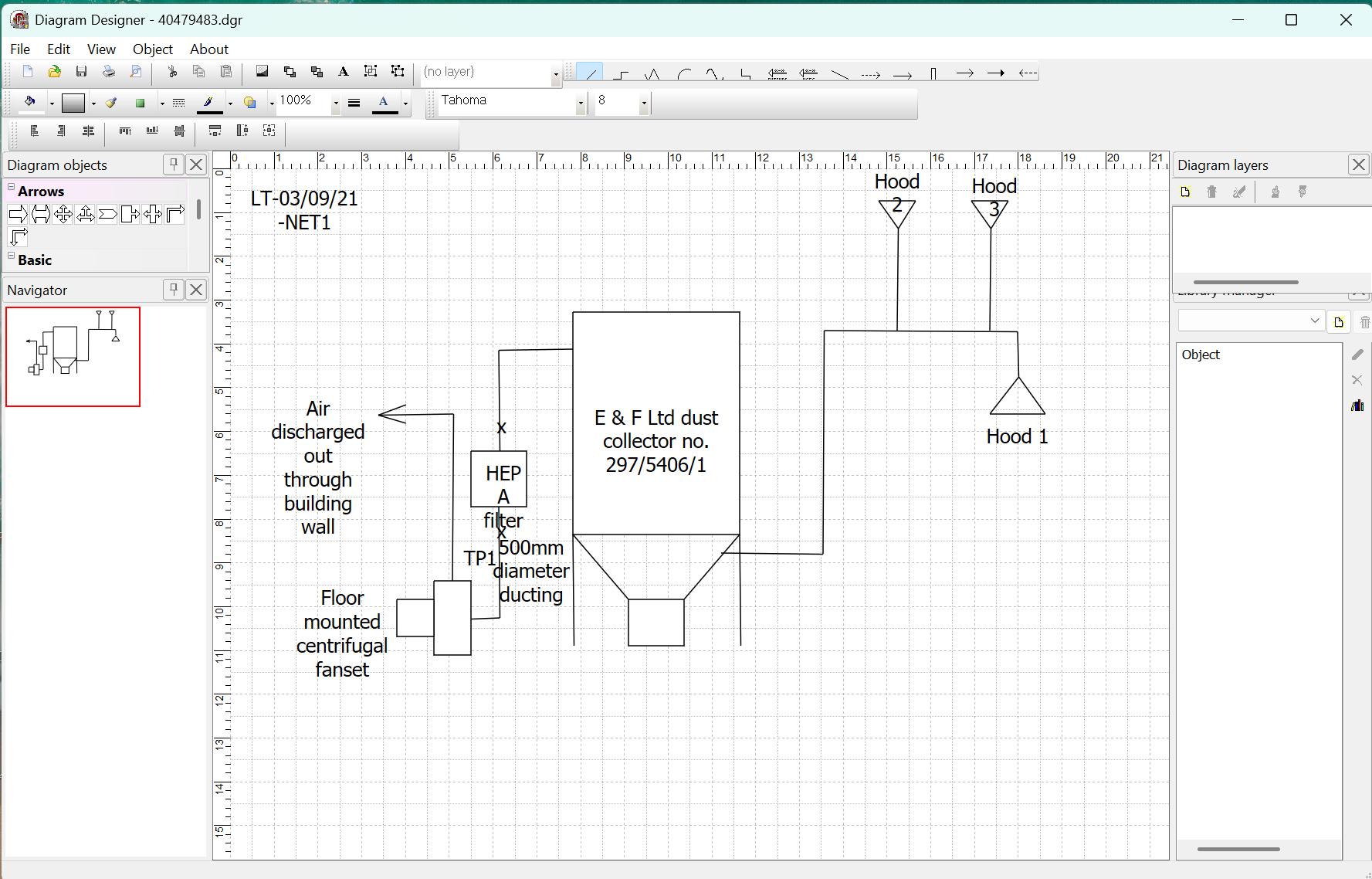

The same file at Display Scale Factor of 150%
I can see this has been mentioned previously, but perhaps not tackled for importing older file formats?
If it makes any difference we use LoadFromStream() to read the diagram from the database but I've generated an example file to make it easier to demonstrate the problem.
TMS Diagram Scaling.zip (233.5 KB)
