TAdvColumnGrid Merged Rows in Fixed Column

VCL TMS VCL UI Pack
1

Hi,

We are using your TAdvColumnGrid to display a grid with a number of fixed rows and columns. We would like to merge some of the 'fixed' rows and columns. The merge works fine for the columns but the for the rows the text of the merged cells doesn't show up.

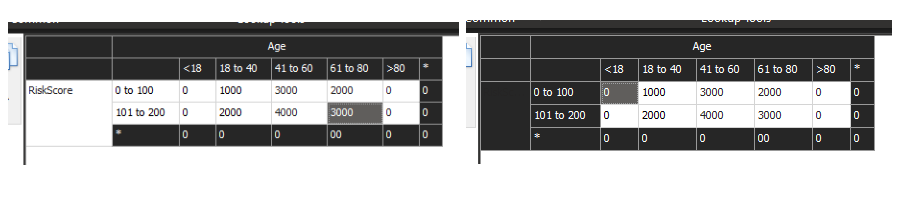

This picture shows what we are trying to achieve (desired on the right - but with text):

colgridissue
colgridissue900×200 28.8 KB

We are loading the content from a csv file and then inserting rows and calling the merge just after:

   Editor.LoadFromStream(csvstream);

   Editor.InsertCols ( 0, 1 );
   Editor.InsertRows ( 0, 1 );
   Editor.FixedRows := 2;
   Editor.FixedCols := 2;
   Editor.Cells[1, 0] := 'Age';
   Editor.Cells[0, 2] := 'RiskScore;
   Editor.MergeCells ( 1, 0, Editor.ColCount-1, 1 );
   Editor.MergeCells ( 0, 2, 1, Editor.RowCount-2 );

   Editor.Cells[Editor.ColCount-1, 1] := '*';
   Editor.Cells[1, Editor.RowCount-1] := '*';

If we set the Editor.FixedCols := 2 to 0 instead it shows.

Are we doing something wrong ?

Thanks

2

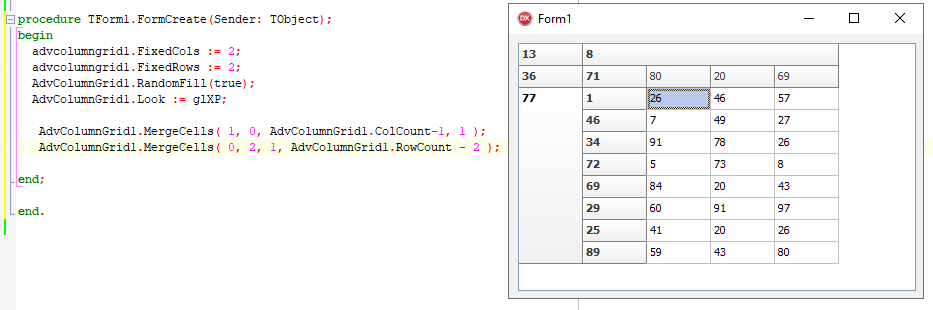

I test this here with a default grid on the form and the code:

image933×310 27.4 KB

but I can't see anything wrong. This is the expected behavior?
What exactly do you see wrong?

3

Thanks for your reply...

I have replicated our issue with the following

procedure TForm17.FormCreate(Sender: TObject);
begin
   AdvColumnGrid1.Look := glCustom;
   AdvColumnGrid1.UIStyle := tsOffice2019Black;

   AdvColumnGrid1.RandomFill ( True );

   AdvColumnGrid1.InsertCols ( 0, 1 );
   AdvColumnGrid1.InsertRows ( 0, 1 );

   AdvColumnGrid1.Cells[ 0, 0 ] := 'A Title';
   AdvColumnGrid1.Cells[ 0, 2 ] := 'Col Title';
   AdvColumnGrid1.Cells[ 2, 0 ] := 'Row Title';

   AdvColumnGrid1.FixedCols := 2;
   AdvColumnGrid1.FixedRows := 2;

   AdvColumnGrid1.MergeCells ( 0, 0, 2, 2 );
   AdvColumnGrid1.MergeCells ( 2, 0, AdvColumnGrid1.ColCount-2, 1 );
   AdvColumnGrid1.MergeCells ( 0, 2, 1, AdvColumnGrid1.RowCount-2 );
end;

this produces the following:

Thanks for helping

4

We could reproduce this now and we're investigating.
Immediate workaround for now is to add this event handler:

procedure TForm1.AdvColumnGrid1GetCellColor(Sender: TObject; ARow,
  ACol: Integer; AState: TGridDrawState; ABrush: TBrush; AFont: TFont);
begin
  if (acol <= 1) or (arow <= 1) then
  begin
    AFont.Color := clWhite;
  end;
end;
5

I see thanks for this. We will proceed with that for now.
