Errors when Installing TMS FNC Cloud Pack

TMS TMS Smart Setup
1

Using TMS Smart Setup GUI to install todays build 3.6.3.2 I am getting lots of errors like this:

[TRACE] [2025-10-27 17:41:13.370] Temporary parallel directory deleted successfully: C:\Pair\TMS Setup\Temp\p\tms.fnc.core_d12_iosdevice64_Debug
[TRACE] [2025-10-27 17:41:13.371] Temporary parallel directory deleted successfully: C:\Pair\TMS Setup\Temp\p\tms.fnc.core_d12_iosdevice64_Release
[INFO ] [2025-10-27 17:41:14.495] Building package TMSFNCCorePkg for "Delphi 12.iosdevice64" with Release config.
[TRACE] [2025-10-27 17:41:14.514] Execute command: C:\Windows\Microsoft.NET\Framework\v4.0.30319\msbuild.exe "C:\Pair\TMS Setup\Temp\p\tms.fnc.core_d12_iosdevice64_Release\TMSFNCCorePkg.dproj" /target:Build /nologo /p:config=Release /p:Platform="iOSDevice64" /p:UnitSearchPath="C:\Program Files (x86)\Embarcadero\Studio\23.0\lib\iOSDevice64\release;C:\Pair\TMS Setup\Temp\p\tms.fnc.core_d12_iosdevice64_Release\iOSDevice64\Release" /p:DelphiLibraryPath="C:\Program Files (x86)\Embarcadero\Studio\23.0\lib\iOSDevice64\release;C:\Pair\TMS Setup\Temp\p\tms.fnc.core_d12_iosdevice64_Release\iOSDevice64\Release"
[TRACE] [2025-10-27 17:41:14.514] Working directory:
[TRACE] [2025-10-27 17:41:14.999] --- Output start ---
[TRACE] [2025-10-27 17:41:14.999] Build started 27/10/2025 17:41:14.
Project "C:\Pair\TMS Setup\Temp\p\tms.fnc.core_d12_iosdevice64_Release\TMSFNCCorePkg.dproj" on node 1 (Build target(s)).
C:\Users\maria\AppData\Roaming\Embarcadero\BDS\23.0\iPhoneOS18.0.sdk(27,5): error MSB4035: The required attribute "Include" is empty or missing from the element . [C:\Pair\TMS Setup\Temp\p\tms.fnc.core_d12_iosdevice64_Release\TMSFNCCorePkg.dproj]
Done Building Project "C:\Pair\TMS Setup\Temp\p\tms.fnc.core_d12_iosdevice64_Release\TMSFNCCorePkg.dproj" (Build target(s)) -- FAILED.

Build FAILED.

"C:\Pair\TMS Setup\Temp\p\tms.fnc.core_d12_iosdevice64_Release\TMSFNCCorePkg.dproj" (Build target) (1) ->
C:\Users\maria\AppData\Roaming\Embarcadero\BDS\23.0\iPhoneOS18.0.sdk(27,5): error MSB4035: The required attribute "Include" is empty or missing from the element . [C:\Pair\TMS Setup\Temp\p\tms.fnc.core_d12_iosdevice64_Release\TMSFNCCorePkg.dproj]

0 Warning(s)
1 Error(s)

Time Elapsed 00:00:00.26

4

Hi,
I've just tried it here and I can't see any errors. To me, it looks like the iPhone sdk might be corrupt. Can you try the following?

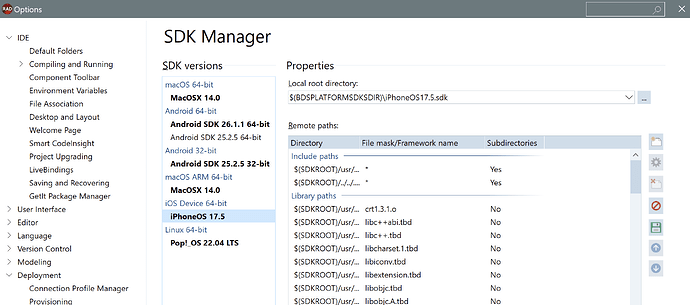

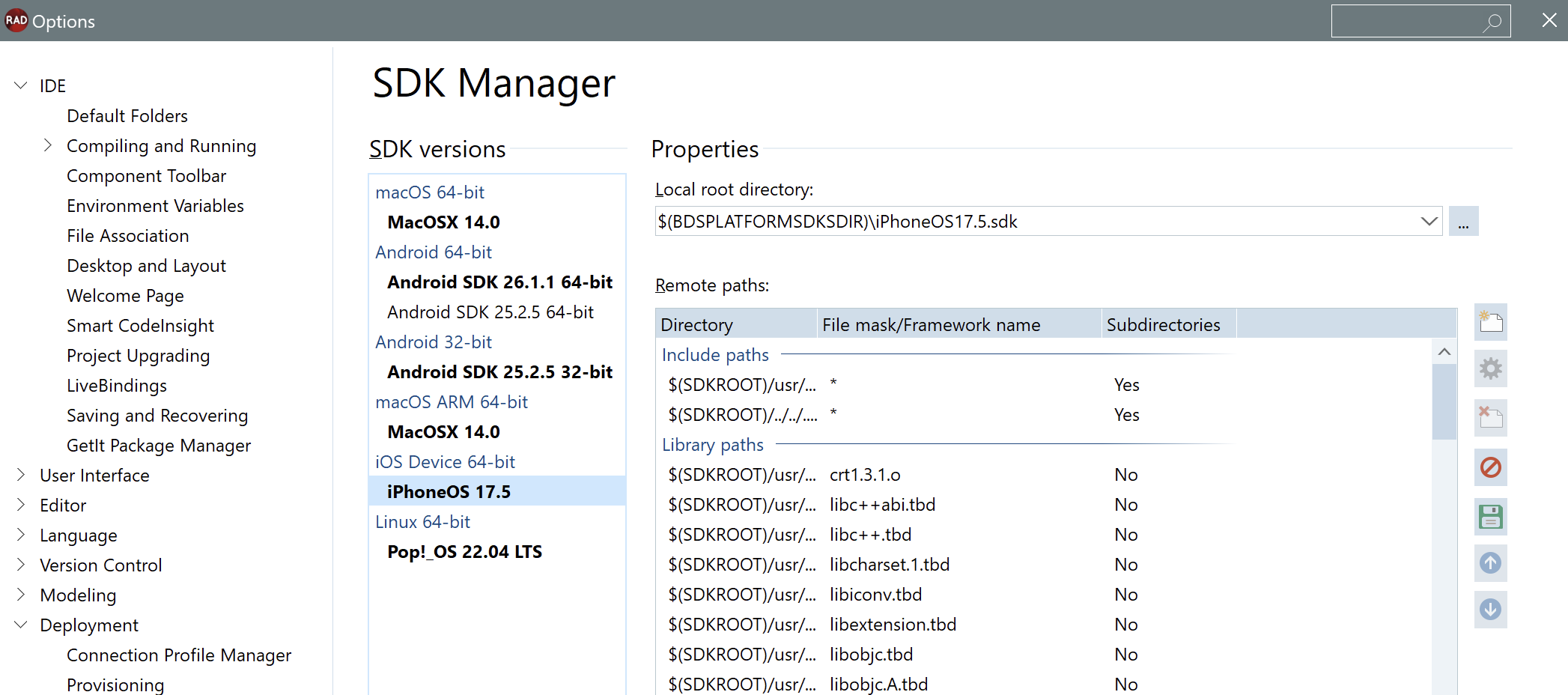

  1. From Delphi go to Tools->Options->Deployment->SDK Manager
  2. Locate the iPhoneOS SDKs and delete them:
    2025-10-29_13.06.25
    2025-10-29_13.06.252094×928 92.2 KB

    (Press the delete button at the bottom)
  3. Add it again

If it still fails, can you post your file:

C:\Users\maria\AppData\Roaming\Embarcadero\BDS\23.0\iPhoneOS18.0.sdk

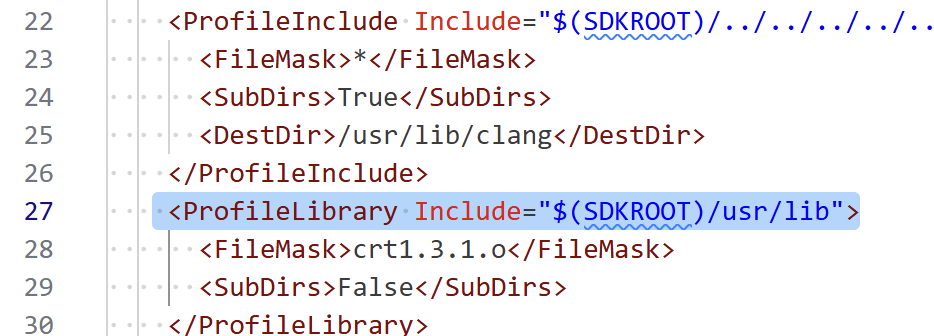

At line 27 (where your error is) in my sdks here I see:

2025-10-29_13.09.22
2025-10-29_13.09.22934×336 42.5 KB

It looks by the error message that you have something wrong there, so it would help to know exactly what that line says. But again, I believe that if you readd the SDK this problem will probably solve itself

5

Thanks Adrian,

It turned out that the Delphi iOS 64 path had somehow become truncated. There were also some blank entries in the SDK frameworks. Once I fixed these and ran TMS Doctor followed by TMS Update all was well.

Regards,

Ken
