Huge THtmlTreeView scaling problem

VCL TMS VCL UI Pack
1

I updated to the latest VCL UI Pack, 10.4.8.0, and now my THtmlTreeView looks horrible at Windows display scaling greater than 100%.

THtmlTreeView 1.5.3.3

Here it is at 150%:

246×526 7.96 KB

Here it is at 200%

327×573 8.2 KB

2

What Delphi version do you use?

3

Delphi 10.4.1 Enterprise. Manifest set to Per Monitor v2.

BTW, I just downgraded the VCL UI Pack to 10.4.7.0 which as THtmlTreeView 1.5.3.2 and that version shows the tree view fine at those scaling settings.

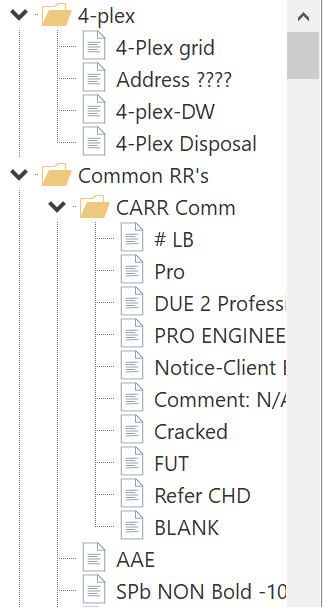

200%:

323×607 8.93 KB

4

Ok, the Delphi underlying TTreeView VCL clearly has a different behavior before and after 10.2.
We have fixed this taking in account Delphi versions and applying different behavior before and after Delphi 10.2.
