CellProperties, VAlignment , vs OnGetAlignment

VCL TMS VCL UI Pack
1

I can set FontName, FontSize, FontStyle, FontColor, BrushColor, and Alignment (horizontal) using CellProperties, and as far as I can tell, that works correctly.
But VAlignment doesn't work. What am I doing wrong?

I read somewhere that it should work via OnGetAlignment, but that was in a different place, so I don't have that information anymore.

It would be really cool if VAlignment worked too.

        if GetBitUI8(Projekt.CalcPDFFm[tmceFmIdx].Layout,cly_Right) then
          pdf_StrGr.CellProperties[ACol,ARow].Alignment  := taRightJustify;
        if GetBitUI8(Projekt.CalcPDFFm[tmceFmIdx].Layout,cly_CentH) then
          pdf_StrGr.CellProperties[ACol,ARow].Alignment  := taCenter;

if GetBitUI8(Projekt.CalcPDFFm[tmceFmIdx].Layout,cly_Bott) then
pdf_StrGr.CellProperties[ACol,ARow].VAlignment := vtaBottom;
if GetBitUI8(Projekt.CalcPDFFm[tmceFmIdx].Layout,cly_CentV) then
pdf_StrGr.CellProperties[ACol,ARow].VAlignment := vtaCenter;

pdf_StrGr.CellProperties[ACol,ARow].FontName := Projekt.CalcPDFFm[tmceFmIdx].Font.Name;
pdf_StrGr.CellProperties[ACol,ARow].FontSize := Projekt.CalcPDFFm[tmceFmIdx].Font.Size;
pdf_StrGr.CellProperties[ACol,ARow].FontStyle := Projekt.CalcPDFFm[tmceFmIdx].Font.Style;

pdf_StrGr.CellProperties[ACol,ARow].FontColor := Projekt.CalcPDFFm[tmceFmIdx].FontColor;
pdf_StrGr.CellProperties[ACol,ARow].BrushColor := Projekt.CalcPDFFm[tmceFmIdx].HintColor;

2

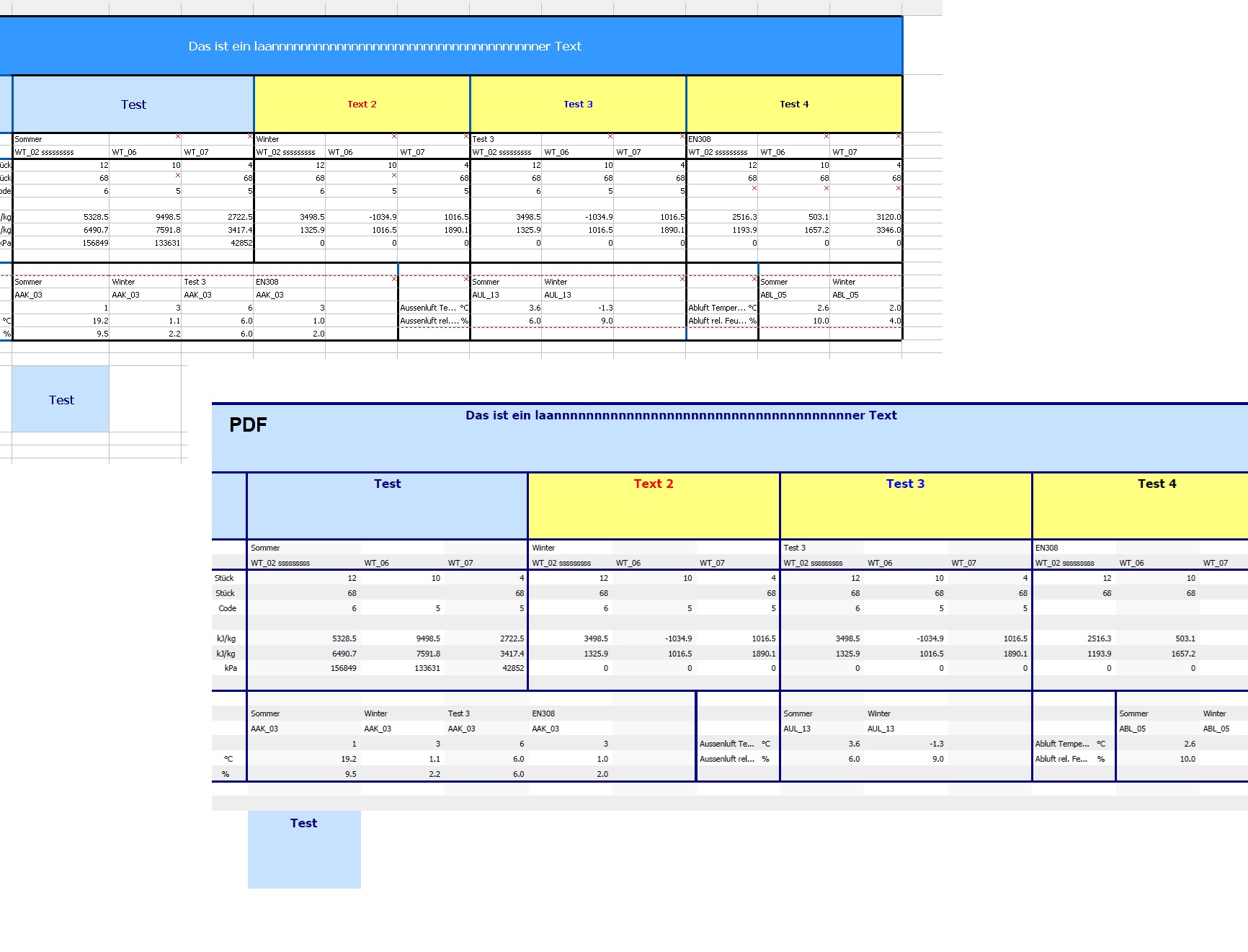

I need this for a PDF output is OnGetAlignment not called at all in that case?

TMSPDF
TMSPDF1732×1321 285 KB

3

For vertical alignment, this needs to be set through the event handler OnGetAlignment() and also make sure to set grid.WordWrap := false, as wordwrapped text is always drawn top aligned.

4

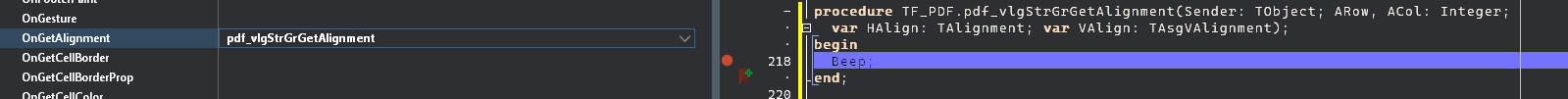

OnGetAlignment() does not respond

I need that with TAdvStringGrid / TAdvGridPDFIO


image1599×101 5.73 KB

7

At this moment, it isn't supported at PDF level. We put it on our todolist to investigate to add support for a future version.

8

Okay,

is there perhaps a temporary solution?
I'm already doing this with the grid lines in AfterDrawContent.
Could you suggest a solution for the text?

grid lines:
That would also be a useful feature: Transferring the line color/style/width from the grid to the PDF.

9

Using custom drawing would be the only alternative I can think of.
We'll also put line colors on the todolist.

10

I have another problem.

If the text is longer than the cell size, it always appears aligned to the left (top ?), even though I've set pdf_StrGr.CellProperties[tCol,tRow].Alignment := taRightJustify; As soon as there's enough space for the text, it works.

grafik
grafik701×122 8.93 KB

11

Set grid.WordWrap = false

12

I create multiple TAdvStringGrid objects at runtime.
To avoid having to define them from scratch,
I have a template called “pdf_vlgStrGr,”
which assign to the runtime-created object using
"pdf_StrGr.Assign(pdf_vlgStrGr);".

Shouldn't word wrap be applied there as well?

pdf_vlgStrGr.WordWrap is false

13

pdf_StrGr := TAdvStringGrid.Create(Self);
pdf_StrGr.Assign(pdf_vlgStrGr);
pdf_StrGrIO.Grid := pdf_StrGr;

pdf_StrGr.WordWrap := false;
pdf_StrGrIO.Grid.WordWrap := false;

doesn't make a difference

14

So, the alignment problem is in the generated PDF rather than on screen in the TAdvStringGrid instance?
I assume and guess that pdf_StrGrIO represents a TAdvGridPDFIO instance then?

15

The structure is as follows:

  TF_PDF = class(TForm)
    pdf_vlgStrGr: TAdvStringGrid;
    pdf_StrGrIO: TAdvGridPDFIO;
  ....

var
  ...
  pdf_StrGr     : TAdvStringGrid;

begin
  pdf_StrGr                 := TAdvStringGrid.Create(Self);
  pdf_StrGr.Assign(pdf_vlgStrGr);
  pdf_StrGrIO.Grid          := pdf_StrGr;

  pdf_StrGr.WordWrap        := false;
  pdf_StrGrIO.Grid.WordWrap := false;

  for tCol,tRow ...
    pdf_StrGr.Cells[tCol,tRow]   := 'xxxxx';
    pdf_StrGr.CellProperties[tCol,tRow].Alignment  := taRightJustify;
  end;

  pdf_StrGrIO.Save(aFilename);
end;
17

We could see an inconsistency in the PDF export and we are investigating this.

20

We applied a fix, which will be available in the next release.

Thanks for reporting!
