TWebGridPanel bug?

WEB TMS WEB Core
1

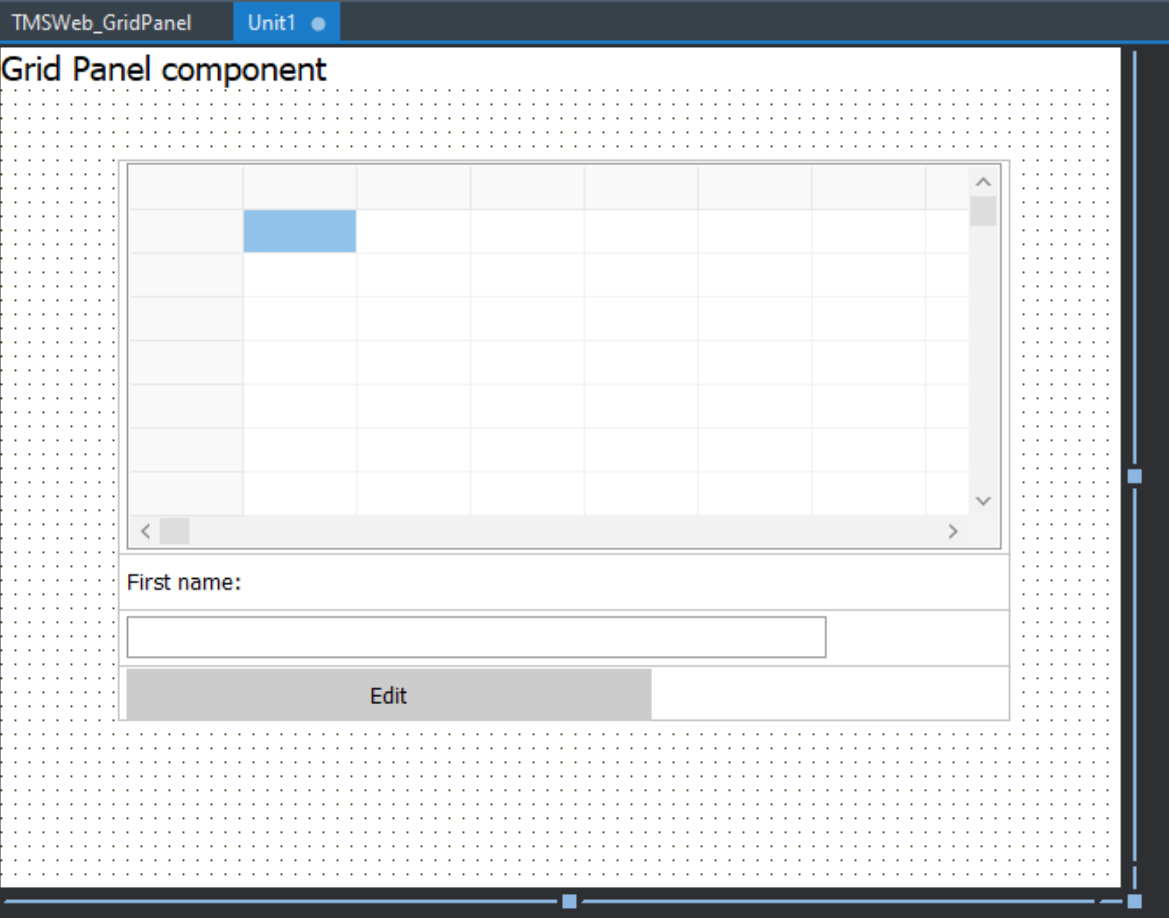

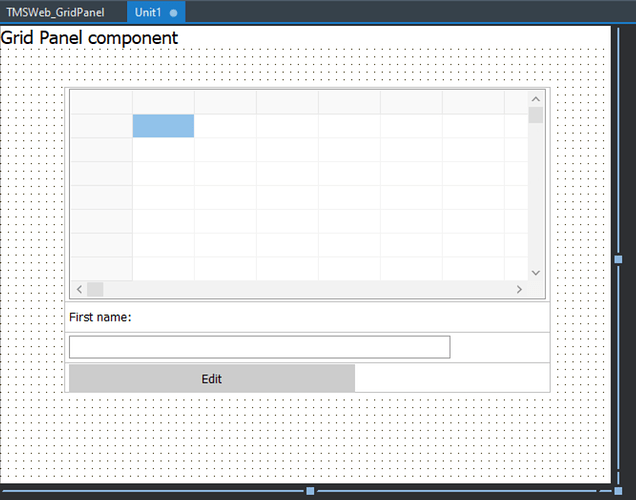

The attached project is based on the TWebGridPanel demo, simplified to a single column and with a TWebStringGrid inserted in the first row. In the Design view, it appears thus:

image1169×918 51.2 KB

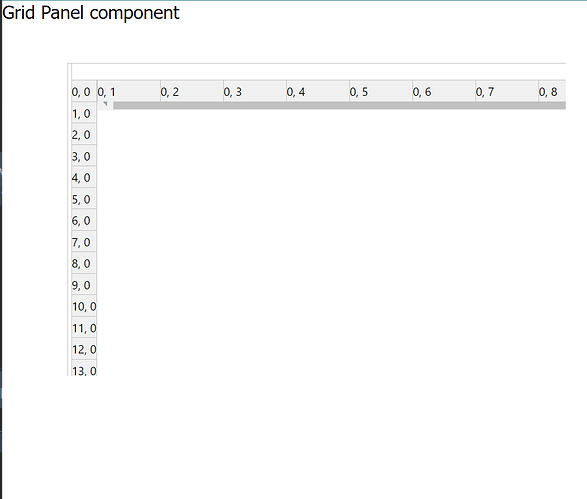

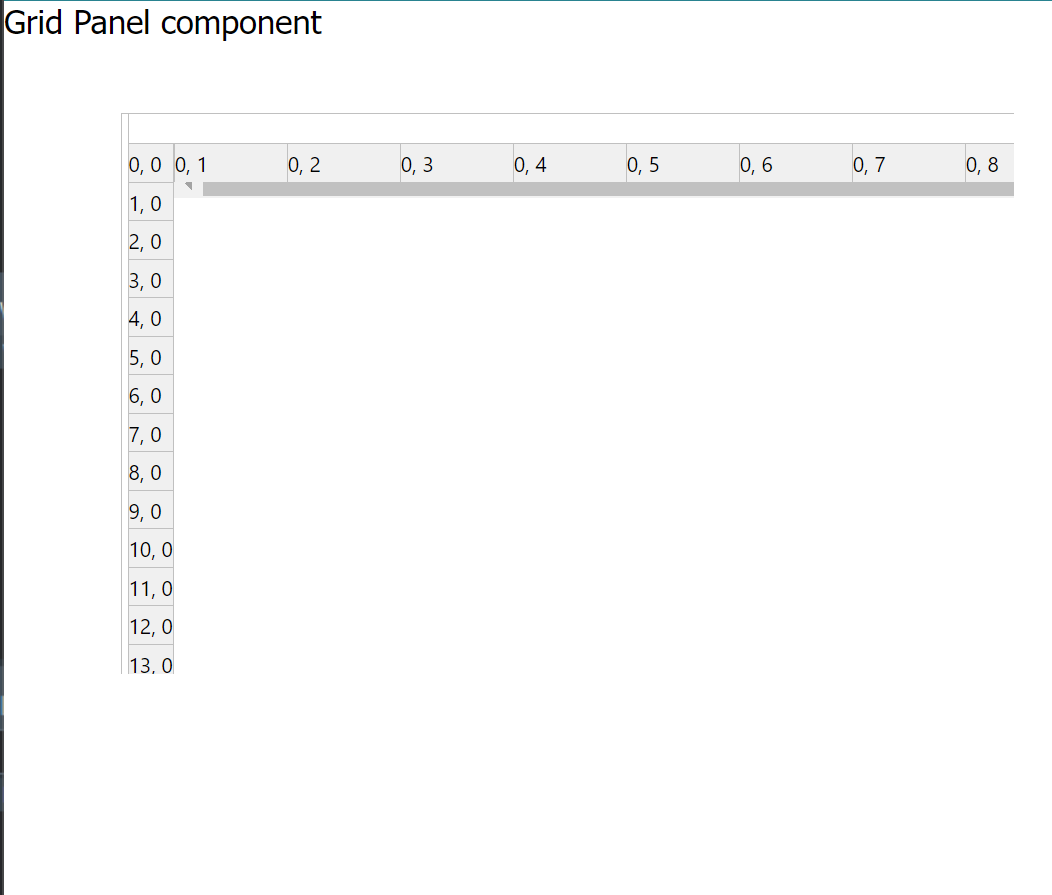

And in the browser, I see this:
image1052×895 19.4 KB

IOW, the WSG consumes the whole of the WGP, but displays only the fixed row and column with no scroll bars to reveal the rest of the grid. Is this a WGP bug or am I doing something wrong?
WebGridPanelBugDemo.zip (6.9 KB)

2

I suggest to add a TWebPanel to the TWebGridPanel. Drop the TWebStringGrd on this panel. With this setup, it works as expected here.

3

Thanks, that does work. I still regard this as a bug though. Do you disagree?

4

I do not disagree, on the list to investigate deeper in the TWebStringGrid

5

Thanks. BTW, it also seems that the WebGridPanel total sizing works more reliably when it contains a WebStringGrid, if it is dropped on a WebPanel itself.

6

Yes, we've seen this and it is a non-trivial issue with the TABLE element for the stringgrid that is in a 100% width, 100% height SPAN (to fit in the grid panel)

The TABLE behaves better when it is in a parent element from where it can its absolute width & height. The lightest element to use for this is a TWebHTMLSpan or TWebHTMLDiv

7

Thanks, I haven't used either of those elements so I'll have to read up on them. Is there a relevant demo or just the online documentation?

8

These are really basic wrapper components for a HTML DIV or SPAN. Not much involved otherwise.

9
