Subtotals are not calculated after adding formatting to a column in TTMSFNCDataGrid

FNC TMS FNC UI Pack
1

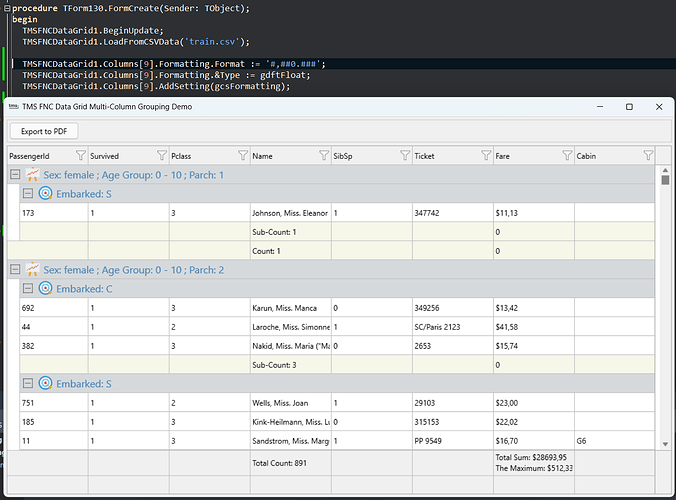

image1337×988 110 KB

2

Setting formatting on the entire column will try to format the calculation string containing Average & Sub-Average string formatting as well. We already demonstrate in the sample how to format the cells containing values, and leave the fixed, summary cells with the default formatting.

If you want to apply formatting you can change the code to

procedure TForm130.TMSFNCDataGrid1GetCellFormatting(Sender: TObject;
  ACell: TTMSFNCDataGridCellCoord; AData: TTMSFNCDataGridCellValue;
  var AFormatting: TTMSFNCDataGridDataFormatting;
  var AConvertSettings: TFormatSettings; var ACanFormat: Boolean);
begin
  if (ACell.Column = 9) and (TMSFNCDataGrid1.RowTypes[ACell.Row] = grtDefault) and (ACell.Row > TMSFNCDataGrid1.FixedRowCount - 1) then
  begin
    AFormatting.&Type := gdftFloat;
    AConvertSettings.DecimalSeparator := '.';
    AFormatting.Format := '#,##0.###';
  end;
end;

If you want to change the formatting for the calculation, this can be done here:

TMSFNCDataGrid1.ColumnCalculations[9, 'Average Fare Price'] := [CreateGroupColumnCalculation(gcmAverage,
  procedure(AColumn: Integer; ALevel: Integer; var AOptions: TTMSFNCDataGridDataColumnCalculationOptions)
  begin
    AOptions.CalculationFormatType := gcfFloat;

    if ALevel = 1 then
      AOptions.CalculationFormat := 'Sub-Average Fare Price: #,##0.###'
    else
      AOptions.CalculationFormat := 'Average Fare Price: #,##0.###';
  end
  )];
