How to change the top row "Title Row" height on datagrid master

FNC TMS FNC UI Pack
1

The following code works great on fncgrid:

procedure TSalesForm.FormCreate(Sender: TObject);
begin
GetSettings;
Salesgrid.rowheights[1] := 70;
Salesgrid.rowheights[0] := 42;
LABEL5.PrefixStyle := TPrefixStyle.NoPrefix;
LABEL1.PrefixStyle := TPrefixStyle.NoPrefix;
end;

Thanks

Garnett

2

This also works on TTMSFNCDataGrid, can you provide some more insight or a more complete code snippet / sample?

3
procedure TXOForm.FormCreate(Sender: TObject);
begin
  FDQUERY2.Close;
  XORDATAGRID.BeginUpdate;
  xorDATAGrid.rowheights[0] := 185;
  xorDATAGrid.rowheights[1] := 150;
  XORDATAgrid.COLUMNS[2].EditorItems.CLEAR;
  XORDATAgrid.Columns[4].EditorItems.CLEAR;
  XORDATAgrid.Columns[5].EditorItems.CLEAR;
  XORDATAgrid.Columns[7].EditorItems.CLEAR;
  fdquery2.SQL.Clear;
  fdquery2.Open('select name, ADDR from LOCATIONGROUP2 WHERE ACTIVEFLAG = TRUE order by name');
  while not FDQUERY2.EOF do
  BEGIN
    XORDATAgrid.Columns[2].EditorItems.Add(FDQUERY2.FieldByName('NAME').AsString);
    XORDATAGrid.Columns[4].EditorItems.Add(FDQUERY2.FieldByName('ADDR').AsString);
    XORDATAgrid.Columns[5].EditorItems.Add(FDQUERY2.FieldByName('NAME').AsString);
    XORDATAGrid.Columns[7].EditorItems.Add(FDQUERY2.FieldByName('ADDR').AsString);
    FDQUERY2.Next;
  END;
  XORDATAGRID.EndUpdate;
  FDQUERY2.Close;
  GetSettings;
end;

procedure TXOForm.FormShow(Sender: TObject);
begin

//  xordatagrid.RowCount := 2;
//  xoritemsDATAGrid.rowheights[0] := 60;
  Label0.Text := 'User: '+dm.FDConnection1.Params.UserName;
end;

procedure TXOForm.XORDataGridGetCellLayout(Sender: TObject;
  ACell: TTMSFNCDataGridCell);
begin
  if Acell.row < XORDataGrid.FixedRowCount then
  begin
    Acell.Layout.TextAlign := TTMSFNCGraphicsTextAlign.gtaCenter;
    acell.layout.Font.Style := [tfontstyle.fsUnderline,tfontstyle.fsBold];
    acell.layout.Font.Size := 15;
    acell.layout.WordWrapping := TRUE;
  end
  else
  begin
      Acell.layout.Font.Style := [tfontstyle.fsBold];
      Acell.layout.Font.Size := 11;
  end;
end;

procedure TXOForm.TabItem1Click(Sender: TObject);
begin
  CALLOUTPANEL5.Visible := FALSE;
  CREATEXO.Enabled := TRUE;
  DeleteXOR.Enabled := False;
  XORITEMDelete.Enabled := False;
  listparts.Enabled := FALSE;
  PANEL14.Visible := FALSE;
  xordatagrid.Filter.Clear;
  IF NOT FDTBL1.Active THEN
  BEGIN
    FDTbl1.OPEN;
    XORDATAGridDatabaseAdapter.Active := true;
    FDTbl2.Open;
  END;
  xorDataGrid.CollapseAllNodes;

end;

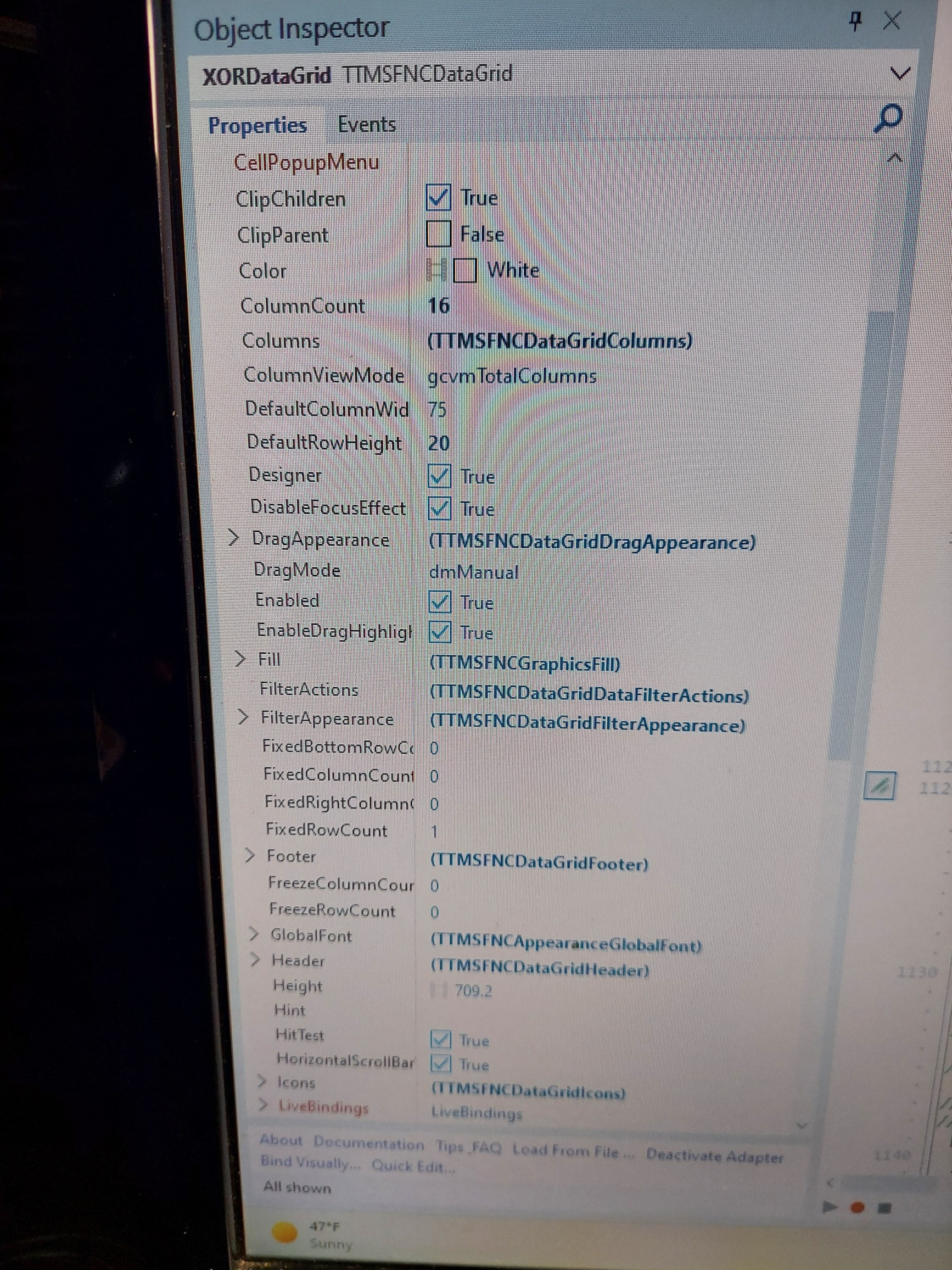

pic3
pic31387×1849 667 KB

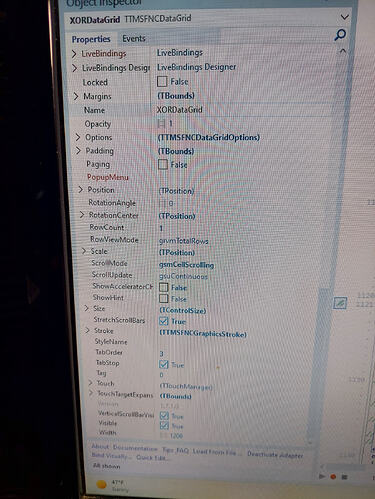

pic2
pic21387×1849 760 KB

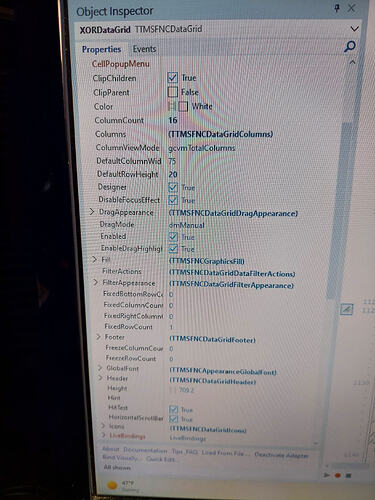

pic
pic1734×2312 1.04 MB

I hope this enough to see my issue

Thanks

Garnett

4

Hi, you might want to set rowheights after opening the dataset.

5

Thanks that worked

Is there away to lock it, so if I close reopen dataset, it appears that I have to set it again.

Thanks

Garnett

6

When closing the dataset rows are removed and also the info attached to the row so it needs to be set again
