TWebStringGrid sorting of fixed columns doesn't work

WEB TMS WEB Core
1

I have 2 problems with sorting a TWebStringGrid:

  1. When I sort by a regular column, the fixed columns are not sorted; and
  2. When I attempt to sort by a fixed column I get an error.

To reproduce this, drop a TWebStringGrid onto a form and then add this code:

procedure TAdminForm.WebFormShow(Sender: TObject);
var
  r, c: integer;
begin
  WebStringGrid1.RowCount := 5;
  WebStringGrid1.ColCount := 5;
  for c := 0 to 4 do
  begin
    for r := 0 to 4 do
    begin
      WebStringGrid1.Cells[c, r] := IntToStr(c * 10 + r);
    end;
    WebStringGrid1.AddSortIndicator(c, 0, siAScending);
  end;
end;

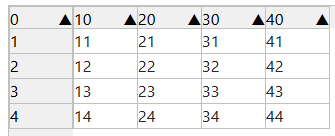

This is what it looks like initially:

Image1335×136 1.72 KB

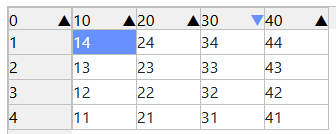

Then click on the sort indicator for column "30" and I get this (grid is sorted correctly except for the fixed column):

Image2336×134 1.99 KB

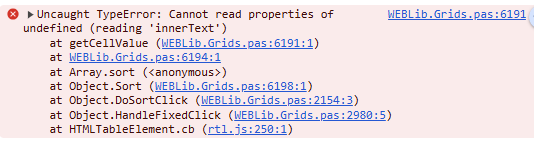

Now click on the sort indicator for the fixed column "0" and I get an error:

Image3534×141 6.33 KB

2

At this moment, fixed columns were not designed to be sortable.
We've improved the code to avoid the error.
To have a sortable column, make sure it is non-fixed.

3

Hi Bruno, thanks for looking at this. It's an acceptable limitation to say that you can't sort by a fixed column, but my first example showed that the limitation really is that you cannot sort by any column if you have any fixed columns. It doesn't make sense for a sort to reorder the rows of the non-fixed columns without the fixed columns being reordered in the same way.
Kind regards.

4

Technically, the fixed column(s) and normal cells are in different HTML tables (to achieve proper scrolling). We'll investigate what we can do about this.

5

FTR, I've worked around the problem by adding some hidden (width=0) non-fixed columns with the same data as the fixed columns. After every sort, I copy the data from the hidden columns into the fixed columns, so the fixed columns appear to get sorted as well. I can even sort on a fixed column by sorting on the corresponding hidden column instead.

6

Thanks for informing & good temporary solution indeed!
