Rotating Block with DefaultTextCell (TextCells[0]

VCL TMS Diagram Studio
1

Hello everybody
I attached a 'R' to a block, see attached figure.
I located the Letter 'R' just under the block, for this I used the folowing code:
DefaultTextCell.SetBounds(0,50,100,100+50);
Alignment = taCenter
VertAlign=vaCenter

When I rotated the Block by 180 deg (RotateFont=true) I got the letter 'R' written UpsideDown!

I tried to define (RotateFont=false) the Letter is Shifted up ... not nice

Anyone can help me solve this problem?!

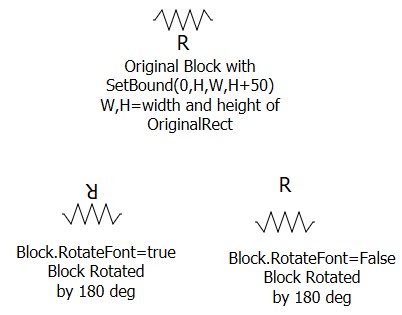

Screenshot1

2

I'm not sure to what product this applies?
Are you referring to TMS Diagram Studio? TMS FNC Blox? Other?

3

I'm assuming this is TMS Diagram Studio, not sure why post was created under a "Feature Requests" since it's a support question.

Please provide a project reproducing the issue, as we don't know exactly how you implemented it.

1 Like
