Foreign key field data not returned by XDATA server when using Aurelius generated object

BIZ TMS Aurelius
1

Hello,

I'm working on an Web Core application connected to an XDATA Server that uses Aurelius Connection with an automatically created object unit.

My problem is that I cannot get any data for a foreign key. It always return a NULL value.

For instance, for these two tables (DDL):

CREATE TABLE USERS (
    USER_ID          BIGINT NOT NULL,
    USER_NAME        D_USERNAME NOT NULL /* D_USERNAME = VARCHAR(255) */,
);

and

CREATE TABLE USER_PASSWORDS (
    PASSWORD_ID    BIGINT NOT NULL,
    USER_ID        D_FOREIGN_KEY NOT NULL /* D_FOREIGN_KEY = BIGINT */,
    USER_PASSWORD  D_PASSWORD /* D_PASSWORD = VARCHAR(1024)
);

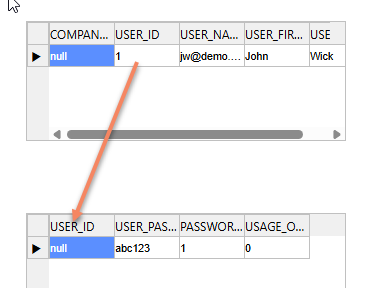

I cannot get any values returned for USER_PASSWORDS.USER_ID. The value is always NULL.

image383×288 7.27 KB

In looking into the generated classes I see that the field was created as

[Association([TAssociationProp.Lazy], CascadeTypeAll - [TCascadeType.Remove])]
    [JoinColumn('USER_ID', [], 'USER_ID')]
    FUSER_ID: Proxy<TCAD_USERS>;

And I think this may be the what is causing the field to be NULL. It seems that I am missing something to have proper values returned, but I can quite put my finger on it.

Can you please provide me with some pointers on what I need to do here?

Thanks,

Alan

2

Maybe start by better understanding the concept of Aurelius ORM and associations. Do not think as database columns, but objects and object trees:

1 Like
3

Great! I'll take a look at this and let you know if I have further questions.

Thanks,

Alan
