ADVStringGrid AddPicture into cell beforetext

VCL TMS VCL UI Pack
1

Hello
I fill and trying to add diference pictograms to cells before text.

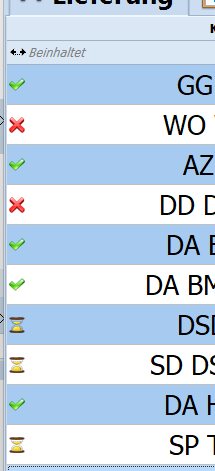

It should be

grafik
grafik215Ă—471 10.9 KB

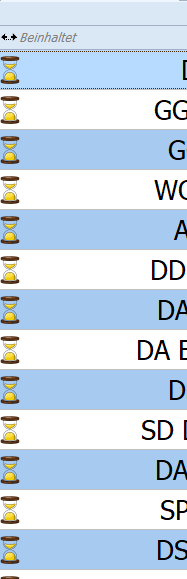

But when i use AddPicture it looks

grafik
grafik187Ă—579 15.5 KB

My pictures are stored in PictureContainer

    while not Query.Eof do
    begin
      Grid.Ints[0, Query.recno + 1] := Query.FieldByName('ArtNr').asinteger;

      if Query.FieldByName('checked').isnull then
        Grid.AddPicture(0, Query.RecNo + 1, PictureContainer1.FindBitmap('HOURGLASS'), false, StretchWithAspectRatio, 8, haLeft, vaCenter)
//        Grid.AddImageIdx(0, Query.RecNo + 1, 2, haLeft, vaCenter)
      else
      begin
        if Query.FieldByName('checked').AsBoolean then
          Grid.AddPicture(0, Query.RecNo + 1, PictureContainer1.FindBitmap('APPLY'), false, StretchWithAspectRatio, 8, haLeft, vaCenter)
//          Grid.AddImageIdx(0, Query.RecNo + 1, 0, haLeft, vaCenter)
        else if Query.FieldByName('checked').asboolean = false then
          Grid.AddPicture(0, Query.RecNo + 1, PictureContainer1.FindBitmap('BUTTON_CANCEL'), false, StretchWithAspectRatio, 8, haLeft, vaCenter);
//          Grid.AddImageIdx(0, Query.RecNo + 1, 1, haLeft, vaCenter);
      end;
      Query.Next;
    end;

but the last image is always taken and overwritten in all cells.
I tryed it with Grid.AddImage but there I cant resize the picture.
What I doing wrong with AddPicture?
With best regards V. Klamm

2

AddPicture() will add one picture.
If you need multiple images you can either use an imagelist and use AddMultiImage() or you can reference multiple images in a HTML formatted text you add to a grid cell.

3

Seems like

is always true.

Here addpicture w/ picturecontainer works fine.

4
Query.FieldByName('checked').isnull

no, is not, because if it false I check for value true or false in DB looks like
grafik
NULL / True / False

first screen is when I use addImage

5

In both cases(HTML or AddMultiimage()) I can´t use stretch for my pictures that stored in imagelist. Pictures stay allways small.
I use now CreateFilePicture() and store my images in app directory.

Maybe is it possible to extend AddPicture() to add images in cells from picturecontainer in the future versions of components?

6

For images via HTML, you can use the width and/or the height attribute to control the size of the rendered image

7

I tryed that

Cells[6, 2] := 'Including <IMG src="idx:0" style="height: 100%;">';

but it doesnt work for me

8

Try to use an absolute width

9

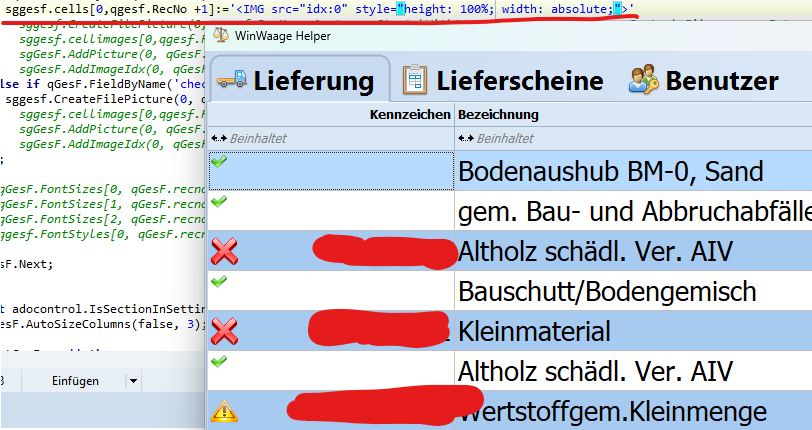

red and yello symbols are with CreateFilePicture() painted.

sggesf.cells[0,qgesf.RecNo +1]:='<IMG src="idx:0" style="height: 100%; width: absolute;">'

grafik
grafik812Ă—430 56.4 KB

I checked html sample its work fine https://jsfiddle.net/f7bkmayd/

10

Absolute means something like:

width=“64px” height=“64px”

11

No, it doen´t work :frowning:

12

But calling AddPicture using a PictureContainer does work.
With the code you sent, the only ways to have this column full of hourglasses are:

1-Your dataset "check" field is always null, which you've already checked.
2-Your picture container has more hourglasses than you thought it did :grinning_face_with_smiling_eyes:

I've tested the using picturecontainer in office19 toolbar demo, where there's a advgrid with addpicture, and it work in many scenarios ... with/without fixed columns, with no fixed row, 1 fixed row, 2 fixed rows (your case)

13

For sure and again :grinning_face_with_smiling_eyes: .... Look at first screenshot where I use AddImage() there is my "checked" field never ever only NULL or FALSE or TRUE my code logic works fine :upside_down_face:

Yeah, becaus last entry im my loop was NULL thats why I create a topic to ask why and
@brunofierens said :

If I change my last entry to true or false it will show me only aplly or cancel signs

show it :smiley:

14

I meant maybe your picture container had no Apply or Cancel signs.
But NOOO! See below!

Wow! I tested it individually! When I put it in into the loop, everything changed!

There IS a third way you could get that column full of hourglasses:
3 - PictureContainer.FindBitmap always return a pointer to a internal bitmap object, so when you call it inside a loop, you're just replacing previous results. :man_facepalming:
So, AddPicture, that points to an external picture object won't fit. Must use CreatePicture instead.

Try:

  while not Query.Eof do
    begin
      Grid.Ints[0, Query.recno + 1] := Query.FieldByName('ArtNr').asinteger;

      if Query.FieldByName('checked').isnull then
        Grid.CreatePicture(0, Query.RecNo + 1, false, StretchWithAspectRatio, 8, haLeft, vaCenter).Assign(PictureContainer1.FindBitmap('HOURGLASS'))
      else
      begin
        if Query.FieldByName('checked').AsBoolean then
          Grid.CreatePicture(0, Query.RecNo + 1, false, StretchWithAspectRatio, 8, haLeft, vaCenter).Assign(PictureContainer1.FindBitmap('APPLY'))
        else if Query.FieldByName('checked').asboolean = false then
          Grid.CreatePicture(0, Query.RecNo + 1, false, StretchWithAspectRatio, 8, haLeft, vaCenter).Assign(PictureContainer1.FindBitmap('BUTTON_CANCEL'));
      end;
      Query.Next;
    end;
15

That wasn´t clear for me.

And I wrote before that works with functions

CreatePicture

or

CreateFilePicture
16

Sorry, I didn't see it.
Somewhere above there's a CreateFilePicture reference. Is it?

The source code I sent is using Grid.CreatePicture with the PictureContainer.

The Result of FindBitmap function is a TPictureContainer local object variable that is constantly freed/created. Thats why it doesn't work well with AddPicture, that relays on existing bitmap objects.

1 Like
