AdvExcelIO component issue

VCL TMS VCL UI Pack
1

Hello

I have used the ExcelIO component to export a colour coded DB Grid (ADvDbGrid component). However, the exported file always set the first row no colour coding as per the Grid it is exporting. I have tried many property settings but still I can't seem to stop it from stripping the colour coded files in the first data row of the Excel exported spread sheet. Is there a way around this?
Component version 3.14, Windows 11, Delphi 12.2.

image1514×240 12.8 KB

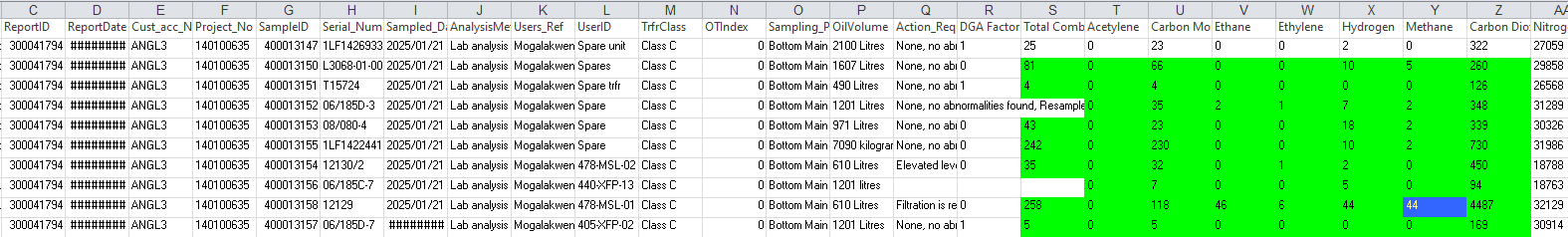

Shows the DB Grid

image1575×238 10.2 KB

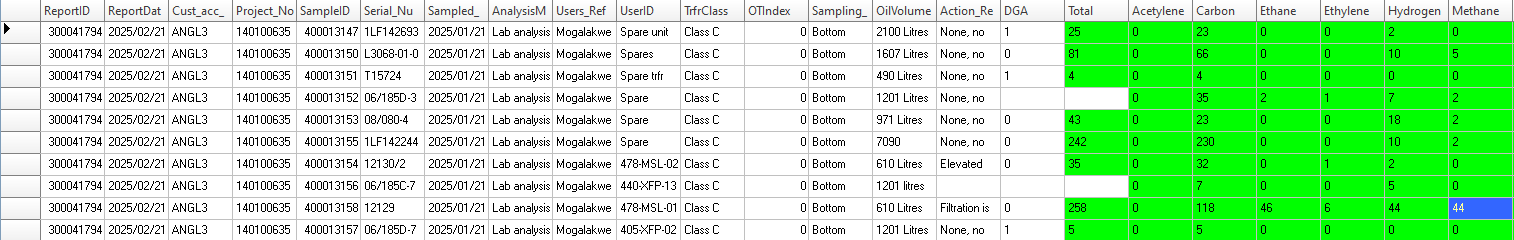

Shows the image of the exported file. Note the first row of data has no colour coding.

2

How exactly do you set the color of cells in TDBAdvGrid? Properties? Event? Other?

3

Hi Bruno,
I use the onGetCellcolor event and setting the ABrush: TBrush .color property.

Regards
Tom

4

I do not see a problem.

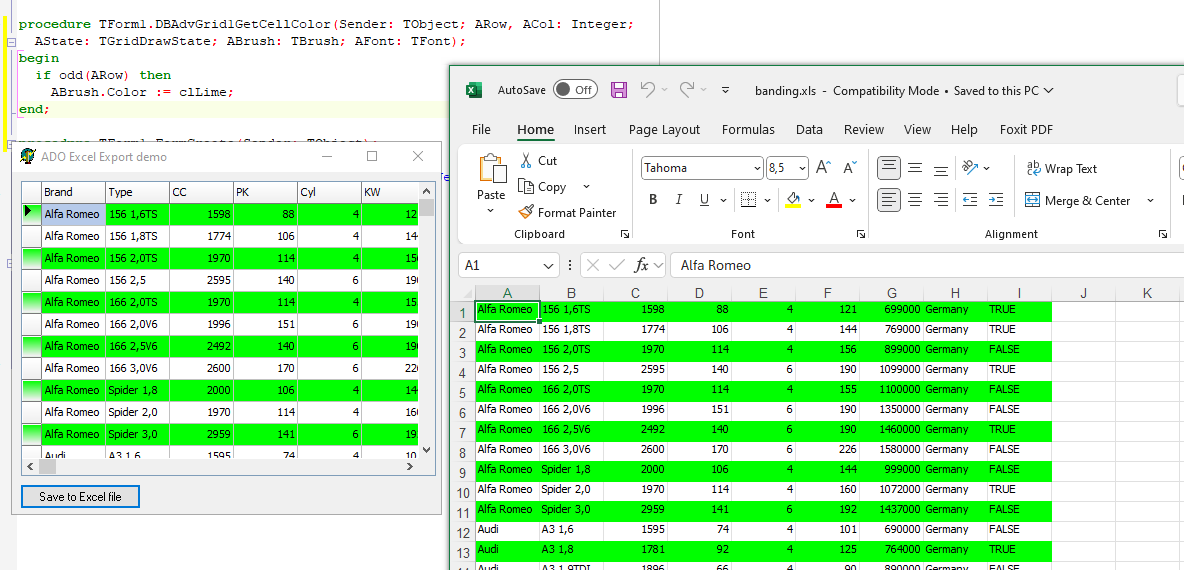

I took the ADOXlsExport demo and added the OnGetCellColor event and the first row background color is exported:

image1184×570 47.9 KB

5

Hi Bruno,

Hmm...I am not sure why it is doing this unless I have some setting in the grid properties that is interfering with the export. Is there anything that you can think off that may interfere with color coding that row. I will check out the demo that you have used and check what properties are set for that grid. It just weird that it is just that row. I feel it must have something to do with the row highlighting or selection.

I see that your record marker and focused cell highlighting is set to true; so, it not the cell highlighting. Either the default row selection or row highlighting code is overriding the colour data being exported.

Regards

6

Please inform when you can provide details with which we can reproduce this

7

Hi Bruno,

I will let you know shortly.

Regards

8

Hi Bruno,

I used exactly the same project with the following code:

procedure TForm1.DBAdvGrid1GetCellColor(Sender: TObject; ARow, ACol: Integer;
AState: TGridDrawState; ABrush: TBrush; AFont: TFont);

Var Limclr: double;
begin
//Code to colour the grid
If ACol > 2 then
begin
Try
If (DBAdvGrid1.Cells[ACol,ARow] <> '') And TryStrtoFloat(DBAdvGrid1.Cells[ACol,ARow],Limclr) then
begin
If (Variant(DBAdvGrid1.Cells[ACol,ARow])) < 1 then
begin
ABrush.Color := clRed;
end
else
begin
If (Variant(DBAdvGrid1.Cells[ACol,ARow])) = 0 then
ABrush.Color := $00BCFEFC
else if (Variant(DBAdvGrid1.Cells[ACol,ARow])) >= 1 then
ABrush.Color := ClGreen
else if (Variant(DBAdvGrid1.Cells[ACol,ARow])) > 20 then
ABrush.Color := clSkyBlue
else if (Variant(DBAdvGrid1.Cells[ACol,ARow])) > 40 then
ABrush.Color := ClYellow
else if (Variant(DBAdvGrid1.Cells[ACol,ARow])) > 100 then
ABrush.Color := clSilver;
end;
end;
Except
On e:exception do
MessageDlg ('Unable to set cell colour! Error: ' + e.Message,mtError, [mbOk],0);
end;

    End;

  end;

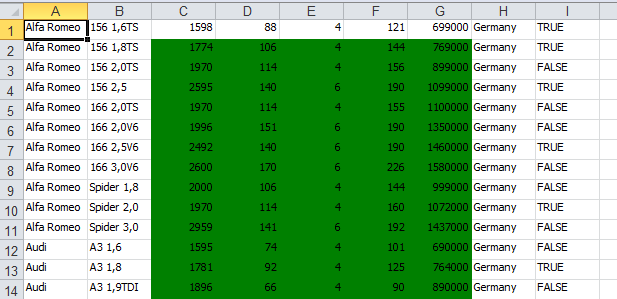

I got the same result.

Note the first row of data is not colour coded.

Regards
Tom

9

Hi Bruno,

I have isolated the issue. Right in the beginning of checking the limits and colour coding them correctly. I placed this code:
if gdFixed in AState then
Brush.Color := clBtnFace
else if gdSelected in AState then
Brush.Color := clNone

This seems to strip the colour from the first row. Ouch. Not sure why I had the code there. I have deleted it as it is not necessary.
Okay this code dates back a number of years, maybe it was important back then.

Thanks for your assistance once again. This first row is now being exported correctly with the colour coding as desired.

Regards
