TTMSFNCDataGrid - Filter

FNC TMS FNC UI Pack
1

fnc.uipack 7.1.1.1

New Grid with Filtering = True and Adapter:

AGrid.FixedColumnCount := 1;

Adapter.KeepData := True;
Adapter.LoadMode := almAllRecords;

When ApplyFilter via code or via dropdown i get:

Debugger Exception Notification

Project AKCWorkbench.exe raised exception class EArgumentOutOfRangeException with message 'List index out of bounds (-1). TList<System.Classes.TCollectionItem> range is 0..16'.

Break Continue Copy Help

:754eae4f KERNELBASE.RaiseException + 0x5f
System.Classes.TCollection.GetItem(-1)
:004af87e TCollection.GetItem + $1A
System.Classes.TCollection.GetItem(???)
FMX.TMSFNCDataGridDatabaseAdapter.{FMX.TMSFNCTypes}TTMSFNCOwnedCollection<FMX.TMSFNCDataGridDatabaseAdapter.TTMSFNCDataGridDatabaseAdapterColumn>.GetItem(-1)
FMX.TMSFNCDataGridDatabaseAdapter.TTMSFNCDataGridDatabaseAdapterColumns.GetItem(-1)
FMX.TMSFNCDataGridDatabaseAdapter.TTMSFNCCustomDataGridDatabaseAdapter.GetFieldIndexAtColumn(-1)
FMX.TMSFNCDataGridDatabaseAdapter.TTMSFNCCustomDataGridDatabaseAdapter.GetFieldAtColumn(-1)
FMX.TMSFNCDataGridDatabaseAdapter.TTMSFNCCustomDataGridDatabaseAdapter.GetColumnDataName(0)
FMX.TMSFNCDataGridData.TTMSFNCDataGridData.GetColumnDataName(0)
FMX.TMSFNCDataGridData.TTMSFNCDataGridData.UpdateFilterBuilderColumns
FMX.TMSFNCDataGridData.TTMSFNCDataGridData.ApplyFilter
FMX.TMSFNCDataGridRenderer.TTMSFNCDataGridRenderer.DoFilterTimer($FFB2100)
FMX.Types.TTimer.DoOnTimer
FMX.Types.TTimer.Timer
FMX.Platform.Timer.Win.TWinTimerService.TimerCallback(0,275,20931,85194796)

Filtering seems to work when Adapter.LoadMode := almBuffered. But then I have other issues with Sorting/AutoSizeRows/empty rows.

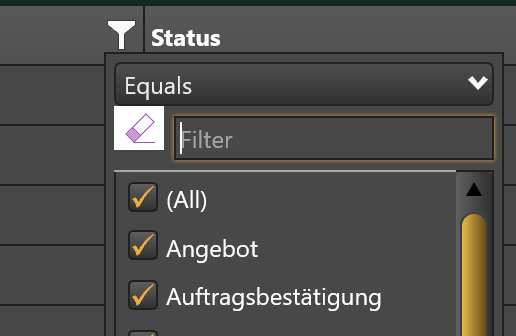

Also Button near “Filter” in Filter-Dropdown is not corresponding to StyleSheet?!

Angebot
Angebot516×336 10.9 KB

Thanks for help…

2

Hi,

I’ve made improvements, next version will address this. Should you encounter issues after updating, let met now.

3

Hi,

thank you, but I still have strange behaviour in combination with FMX.TMSFNCDataGridDatabaseAdapter (7.1.1.3).

. sometimes applies filter during popup visible, sometimes after closing

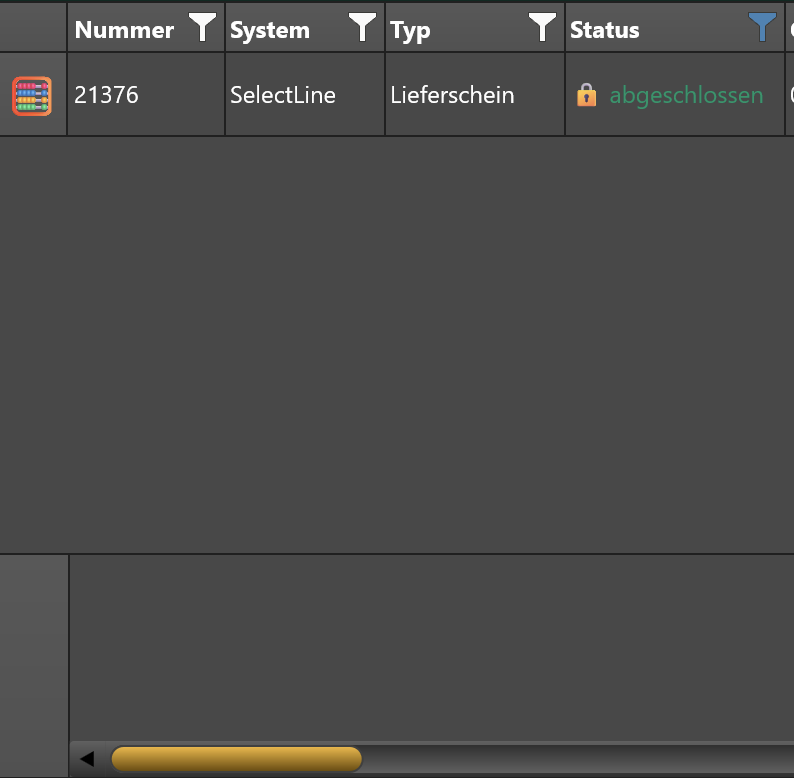

. if number of rows=1 then nothing visible, have to scroll, but rest of grid is destroyed (fixed cols gone)

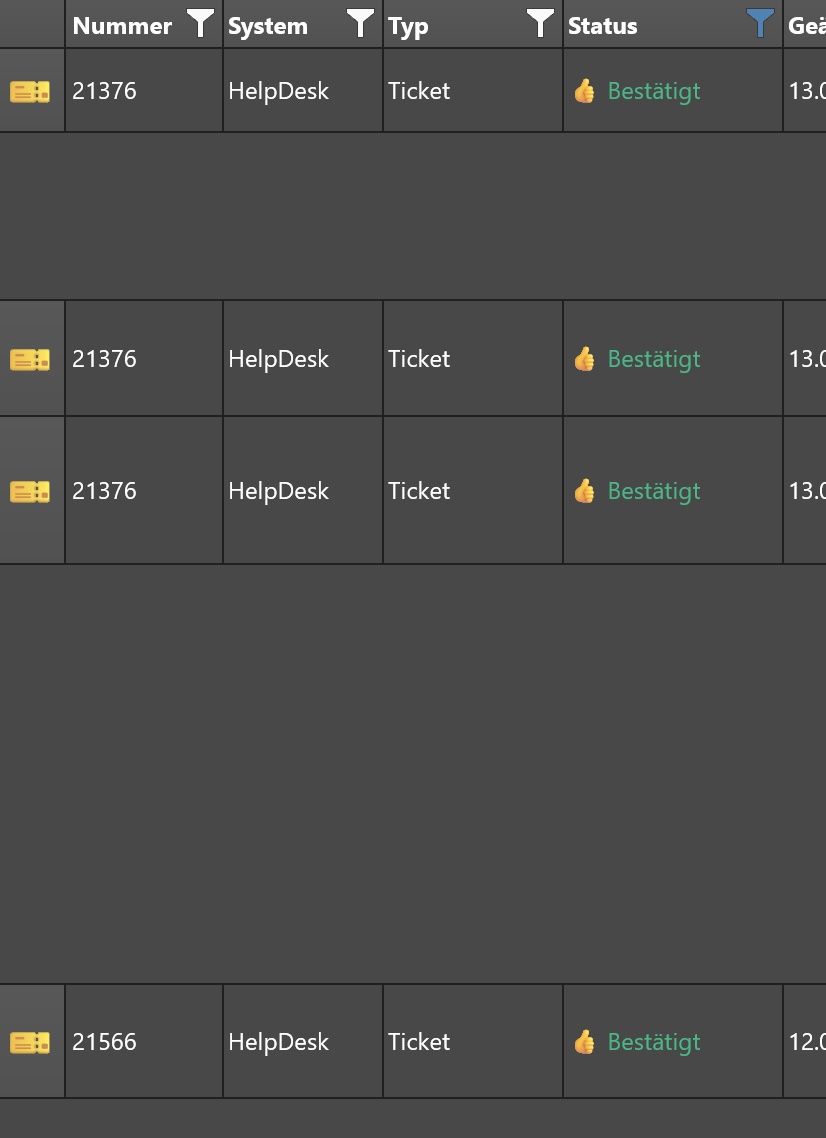

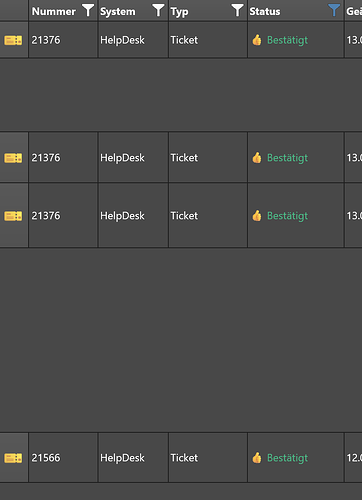

. sometimes only some rows are deleted and space between just keeps empty
. after resizing filter is cleared (sometimes?!)
. Button in Filter-Dropdown not corresponding to StyleSheet
...

Sorry, but I cannot really use it in this state.

4

image826×1138 31.6 KB

5

image794×778 15 KB

6

Hi, please provide case by case topics, and steps to reproduce, so we can apply proper fixes
