Planner Item WordWrap when printed?

FNC TMS FNC UI Pack
1

Hi,
I'd like to know whether it's possible to have the FNCPlanner items print using word-wrap too.
It looks like the Planner Item "text" property correctly wraps (if enabled), but when printed using LibPDF, it's not.
Any idea on how to achieve this?

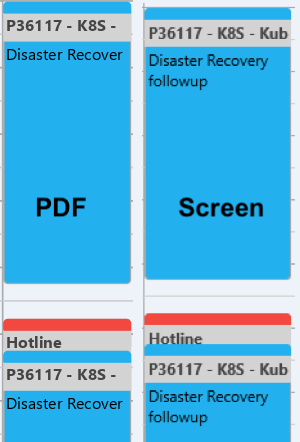

Here is a picture of the displayed item and how it looks on the PDF file export.
PDF on the left (truncated), on screen on the right (word wrap).

Screenshot 2026-09-08 150639
Screenshot 2026-09-08 150639300×442 22.2 KB

Same question actually for the "title" property... that does not have a wordwrap option.

Thanks for any guidance.

2

Did you try with our own PDF Lib?

3

My own?
Besides the one that comes with FNC Core, I don't have any PDF lib...

4

Ah my bad, I though "libPDF" was some kind of other third-party PDF export engine. Do you have some kind of reproducible test case, a code snippet?

5

Yes,
included is a sample of a Planner with two items.
As you see, item Titles don't wrap and are truncated.
Text content is wrapped on screen, but not in the PDF output.
Run it and click PDF, it will ask you where to write the PDFExport.pdf file.

timewrap.zip (19.6 KB)

6

We have fixed this, next version of TMS FNC Core will address this issue.

7

Unfortunately, FNC Core 4.5.0.0 didn't fix the word wrap problem.
Produced PDFs are truncating lines despite being in WordWrap mode.
Ok on screen, wrong on PDF

8

I'll investigate.

9

Hi Steve,

Thank you for following up.

We found an additional issue in the PDF text renderer. When word-wrapped text was vertically centered, the bottom of the text rectangle was calculated incorrectly. This could move part of the text outside the available area, causing wrapped lines to be truncated in the PDF even though they appeared correctly on screen.

This will be fixed in TMS FNC Core 4.5.0.1.

Kind regards,
Pieter

10

Good, hopefully not too late. I'm stuck for a month.
Or is there any way to fix it temporarily ourselves?
